Architecture Overview ​

Raclette is built on a modular and declarative architecture that simplifies how modern business applications are structured, configured, and rendered. At the core of Raclette lies a powerful engine — the Core — which handles state management, data access, user authentication, and more, while providing full flexibility to integrate with various frontend frameworks.

This document outlines the key architectural components of a Raclette-based application and how they interact with one another.

Core ​

The Raclette Core is the foundation of every Raclette application. It provides:

  • Authentication and session management
  • A built-in MongoDB-based database layer
  • A global Redux store — the heart of the application
  • All relevant TypeScript types and configuration interfaces

The Core does not render any UI itself. Instead, it exposes all necessary data via the Redux store, such as:

  • Which widgets should be displayed
  • How the current UI is structured (via Compositions)
  • Application-wide configuration and metadata

It’s this separation of data and rendering that makes Raclette so flexible and extensible.

Admin Dashboard ​

Every Raclette installation includes a built-in, standalone Admin Dashboard — a web-based control center used to configure and manage your Raclette application without writing code.

The Admin Dashboard allows you to:

  • Initialize and manage projects
  • Configure UI views and layouts
  • Create and assign users and permissions
  • Manage tags and metadata
  • Set up InteractionLinks, Widgets, and Compositions

Essentially, anything that doesn't require code changes can be configured here.

Orchestrator ​

The Orchestrator is a customizable project that sits on top of the Raclette Core. Its main job is to:

  • Connect the Core to a specific UI framework (e.g., React, Vue, Svelte, Angular)
  • Decide how the application UI is rendered based on the data provided by the Core
  • Control the rendering logic of the frontend layer
  • Handle custom behavior and project-specific logic

By separating rendering concerns into the Orchestrator, Raclette offers full flexibility and UI framework independence.

Widgets ​

Widgets are the smallest composable units in Raclette. Each widget combines:

  • A visual UI component
  • Its business logic and state configuration

Widgets can range from simple buttons to complex data tables or input forms. They are fully reusable and self-contained, making it easy to manage even large, complex views.

Compositions ​

A Composition defines the structure and content of a view. It describes:

  • Which widgets are displayed
  • How they are laid out on the screen
  • Any logical relationships between them

Compositions are fully declarative. They act as blueprints for screens, making views easy to define, configure, and modify — without hardcoding layout logic.

InteractionLinks define how and when Compositions are triggered. They capture user interactions and describe:

  • The context of the interaction (e.g., current user, current view)
  • What Composition should be shown
  • Which parameters should be passed
  • How the transition is handled (modal, navigation, etc.)

InteractionLinks abstract away manual wiring of events. Instead, you declare what should happen, and Raclette takes care of the rest.

Global Store ​

At the center of everything is Raclette’s global Redux store. It is the single source of truth for the application state and provides:

  • Visibility into active Widgets and Compositions
  • Access to global configuration, metadata, and context
  • Consistent and predictable state management

All parts of the system — including the Admin Dashboard, Orchestrator, and UI components — read from and write to this store.

This allows for powerful features like:

  • State-driven navigation
  • Dynamic rendering
  • Reactive data flows

Backend Integration ​

The Core includes an integrated backend layer that provides:

  • Authentication & authorization
  • MongoDB for structured and unstructured data storage
  • API endpoints for data access
  • A plug-and-play model for backend extension

This backend layer is fully extensible but ready to use out-of-the-box, so you can focus on building business logic rather than implementing infrastructure from scratch.

Summary ​

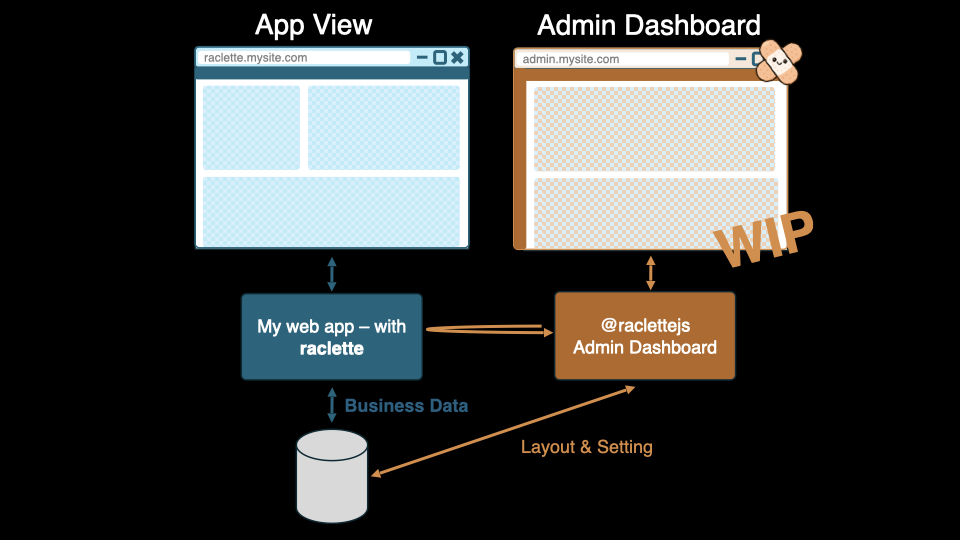

Raclette provides a clear separation of concerns between configuration, logic, and rendering. The architecture can be visualized as:

Architecture graphic
